It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones. It can also carry out light excavation on rocks and hard soil. By replacing different working attachments, it can realize bulldozing, hoisting and handling of other goods.

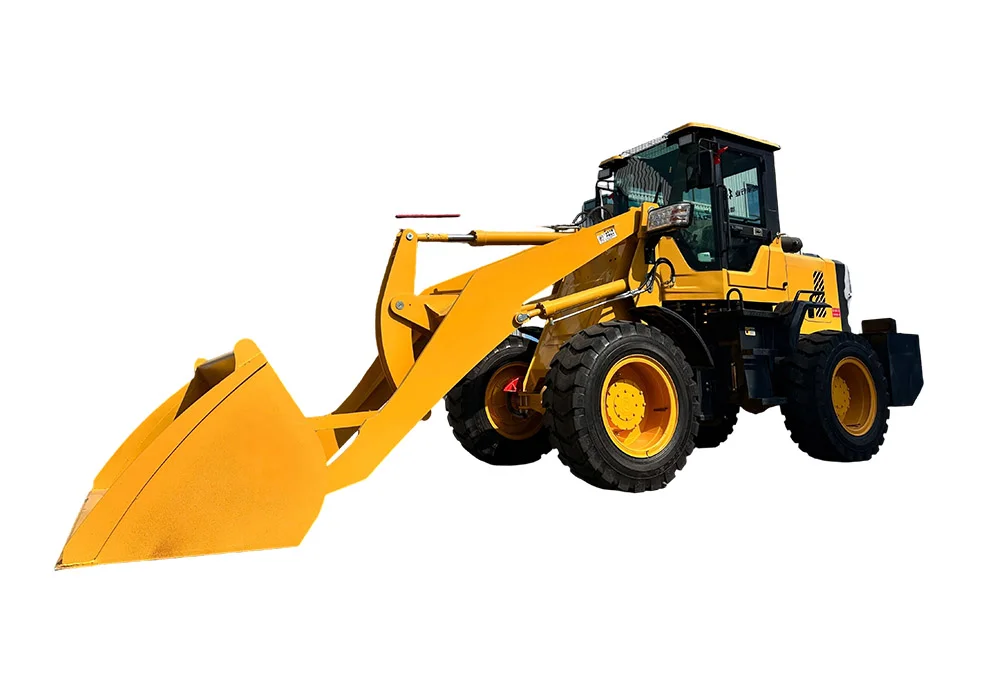

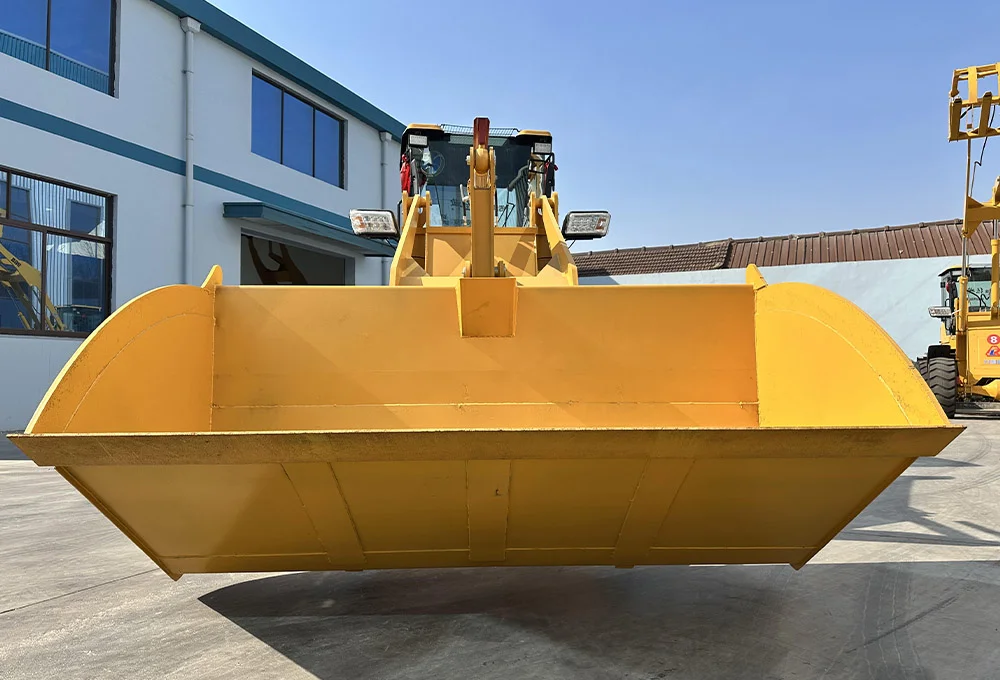

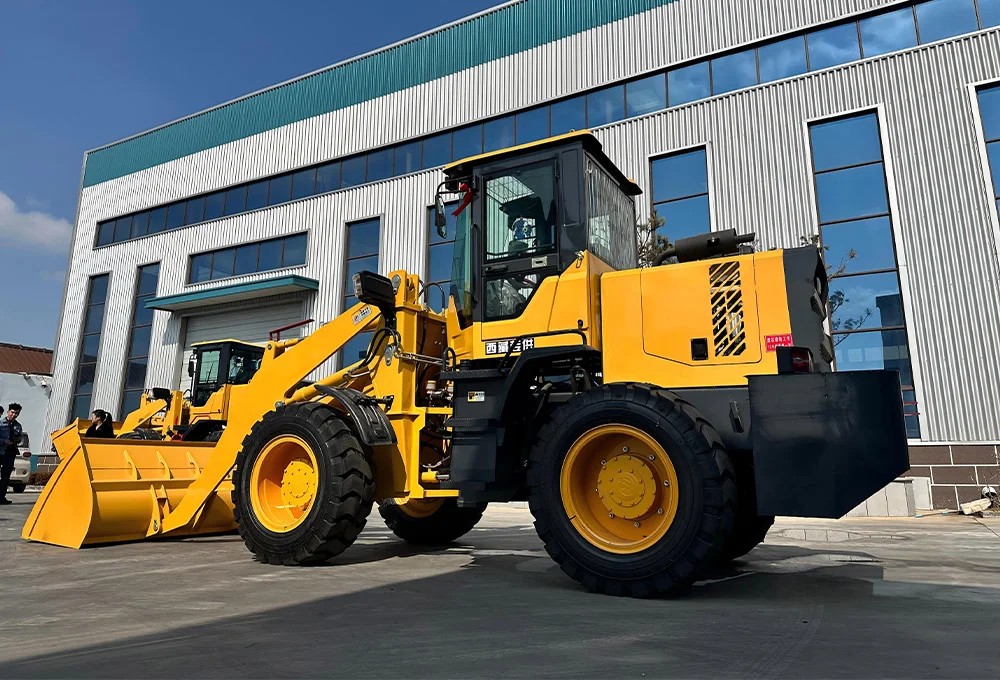

FD25
FD25
Operating Weight: 4700KG
Bucket Capacity: 1.2M³
Dumping Height: 3600MM
Overall Dimensions: 6200*2000* 2950(MM)
Product Description
Core Specifications
The machine is powered by a 4105 turbocharged 4-cylinder engine, delivering a rated power of 88 kW. The turbocharger ensures robust power output and ample low-speed torque, preventing any loss of power during heavy-load startups or uphill operations. It is equipped with a 265-series split-type transmission and a central reduction drive axle, providing smooth torque delivery and high load-bearing capacity. An air-braking system ensures responsive, reliable braking for enhanced operational safety. Both the fuel tank and the hydraulic reservoir feature an 80L capacity, minimizing the need for frequent refueling or fluid replenishment and supporting long, continuous periods of operation.
Product Advantages
The machine features a robust, durable structure with a compact design, offering excellent maneuverability in various settings, including industrial sites, construction zones, and rural areas. The complete cycle—from scooping and loading to unloading—is smooth and efficient, shortening work cycles and boosting overall productivity. The hydraulic system is stable and reliable, resulting in a low failure rate; furthermore, the high interchangeability of parts keeps long-term maintenance costs low. Mechanical pilot controls allow for light, responsive handling, making the machine easy to learn and operate, even for beginners. A fully enclosed cab effectively shields the operator from construction dust and harsh weather; it can also be fitted with an air conditioning/heating unit to create a more comfortable working environment. Additionally, the machine includes a suspension-damped seat that conforms to the operator’s body, providing effective shock absorption, significantly reducing fatigue, and lowering the physical strain on the operator.
Key Selling Points
- High power output with robust performance, ample low-speed torque, and a durable, rugged structure.
- Exceptional load capacity and operational efficiency, designed for long-duration, continuous work.
- Equipped with a central reduction drive axle, ensuring minimal transmission loss, a low failure rate, and reduced daily maintenance costs.
- High ground clearance and agile steering/climbing capabilities, allowing for operation on uneven, rugged terrain or in confined spaces.
- Pilot-operated controls paired with a suspension-damped seat, ensuring operator efficiency and reduced fatigue.
- Heavy-duty, wear-resistant bucket; capable of standard earthmoving, loading, unloading, and transport, as well as light-duty excavation in rocky or hard-packed soil.
- Versatile, multi-functional design—supports a wide range of attachments for tasks such as loading, material handling, pallet handling, and dozing.
- Highly customizable to meet specific customer requirements, including bucket capacity, cab configurations, and a variety of specialized attachments.
