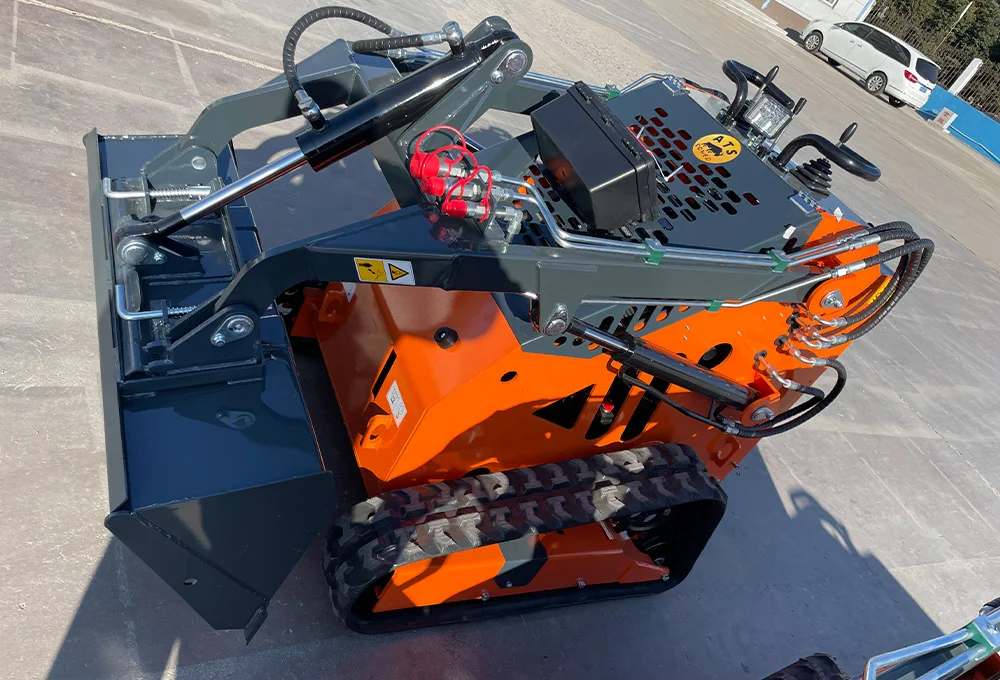

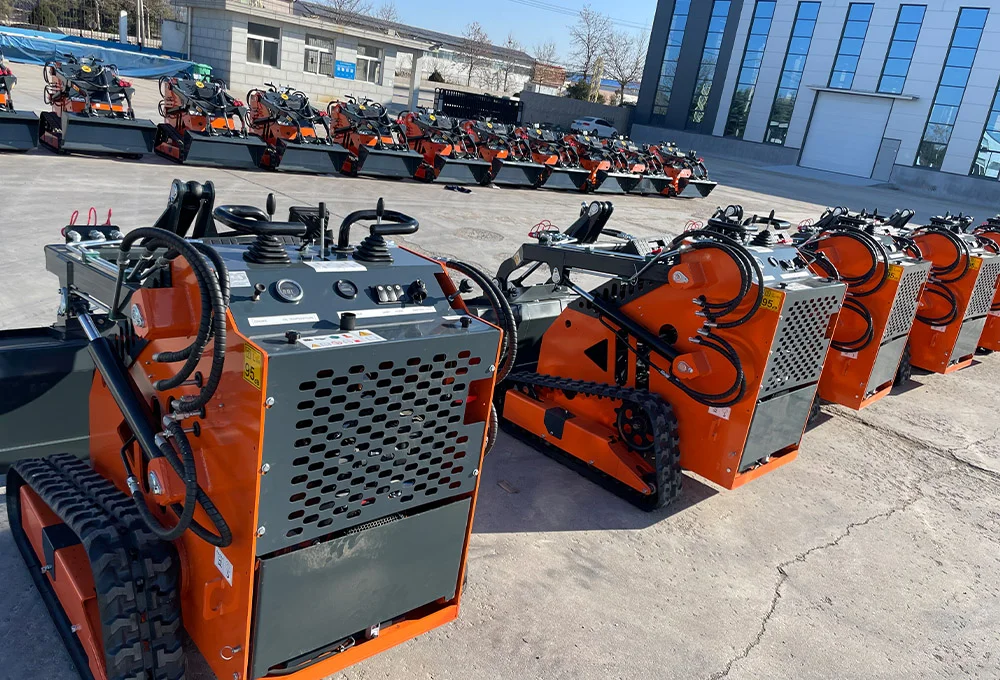

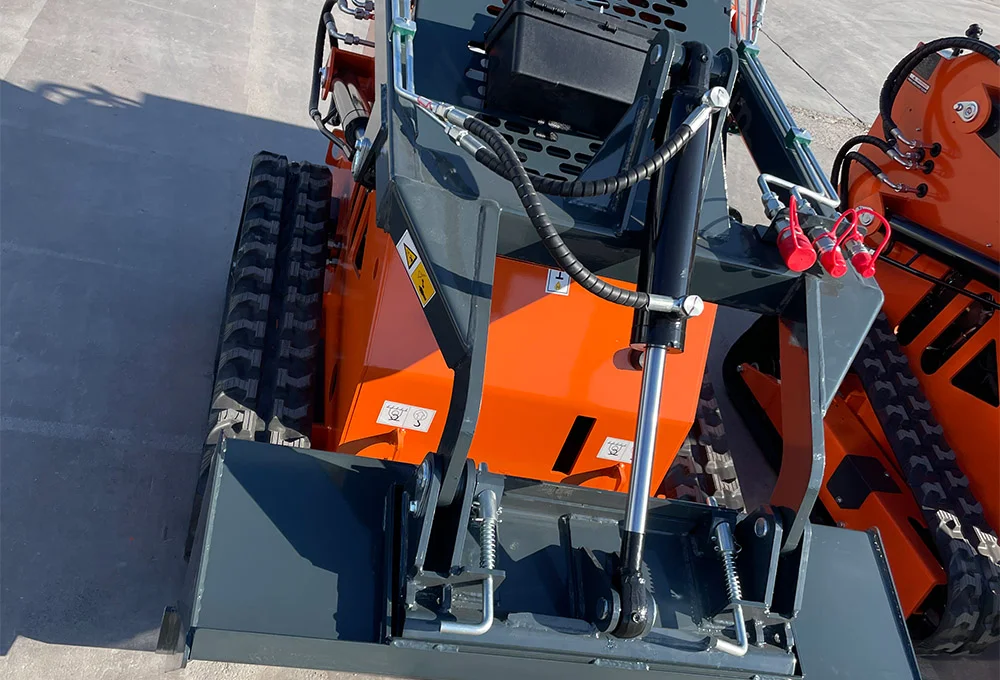

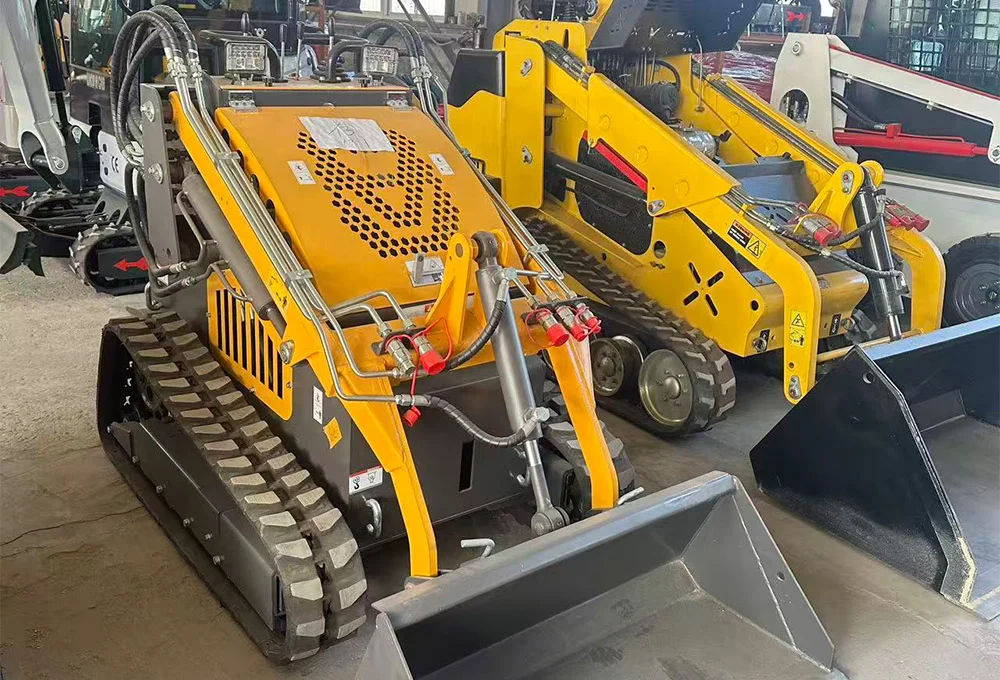

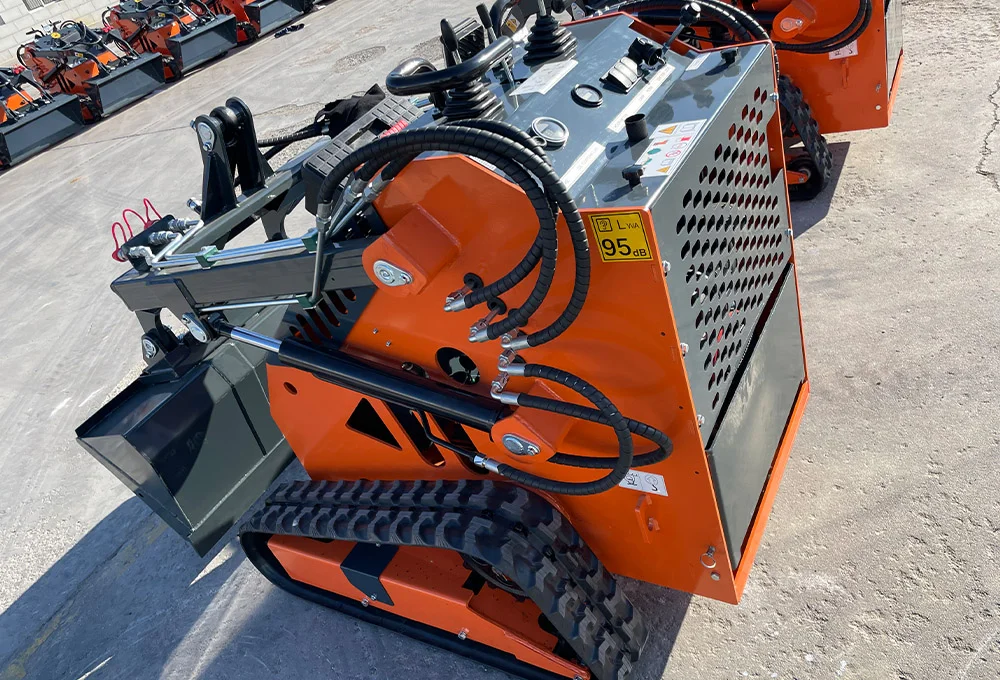

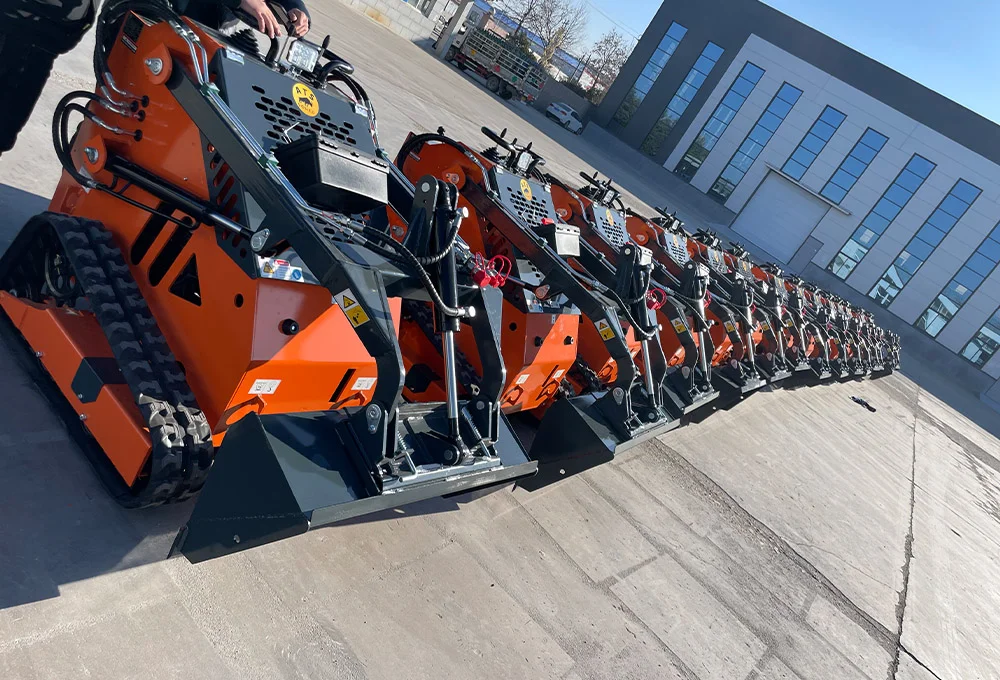

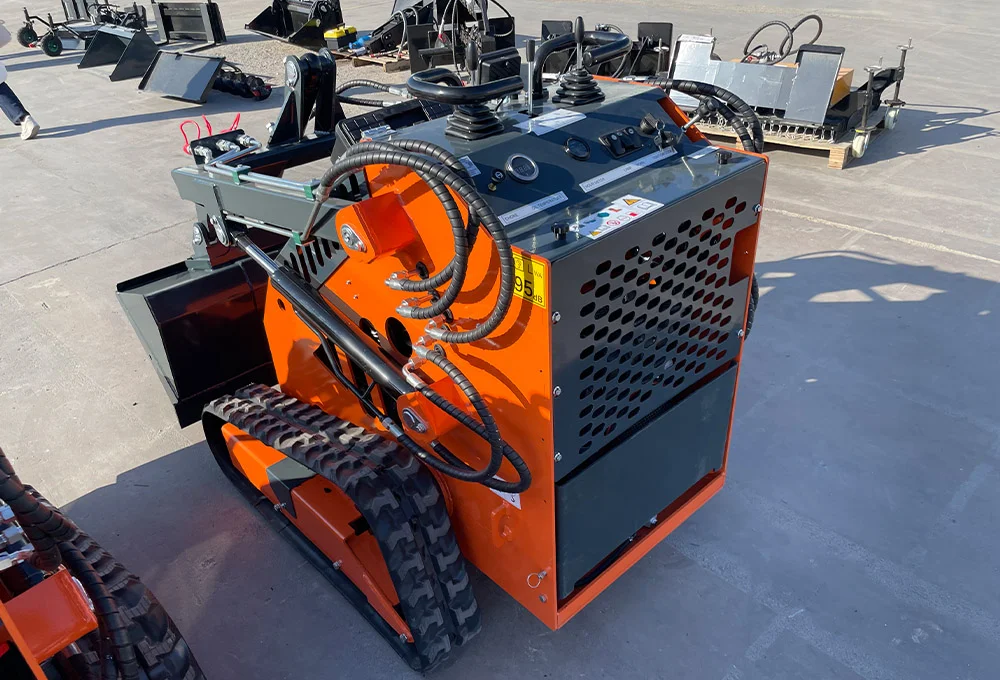

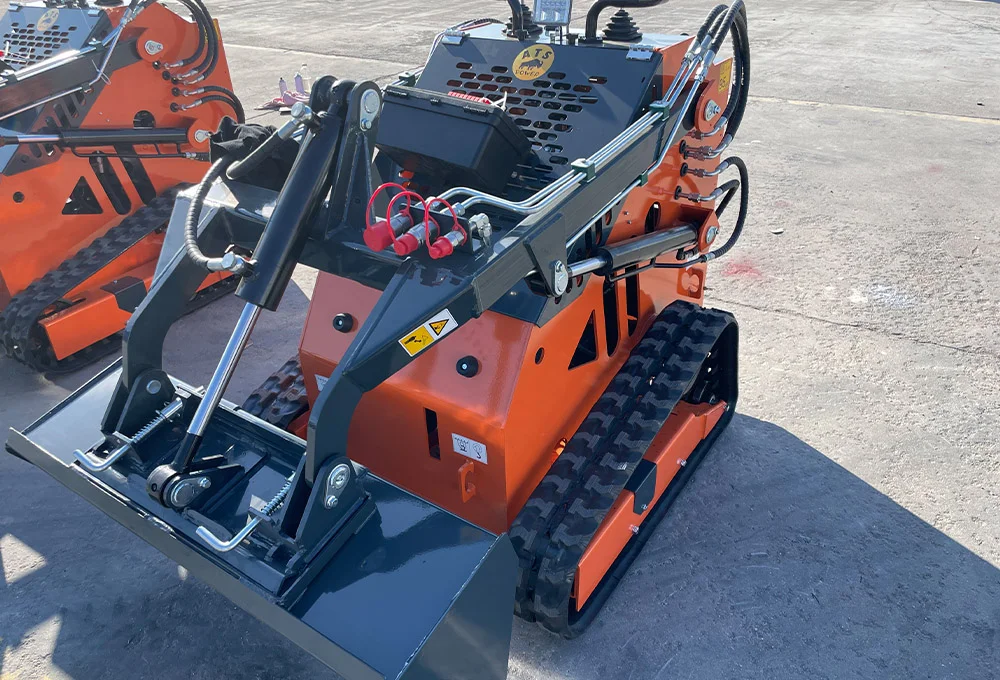

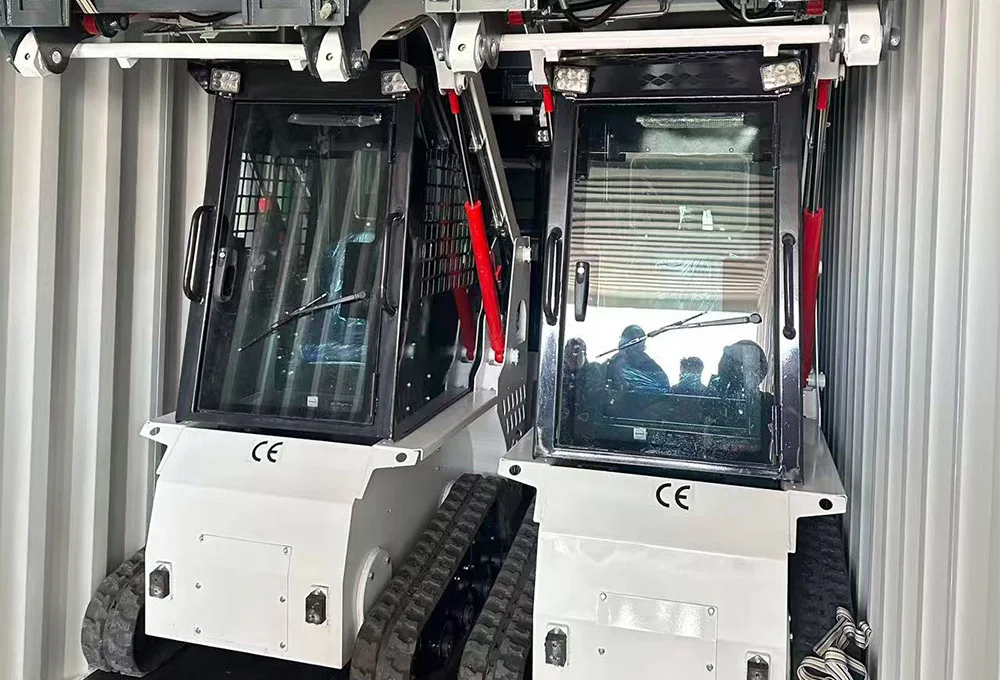

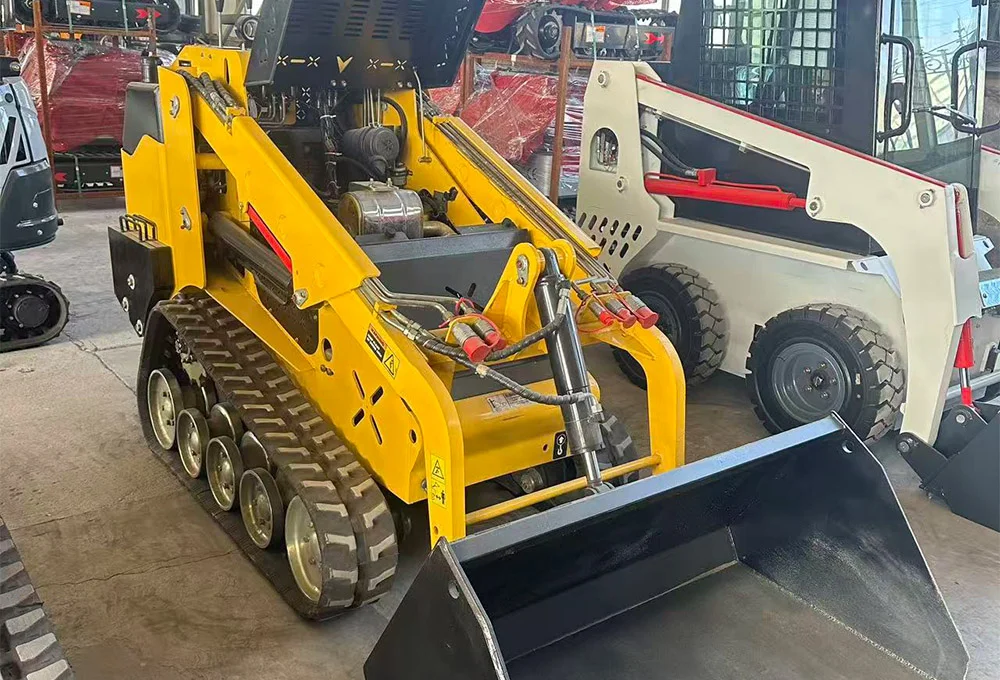

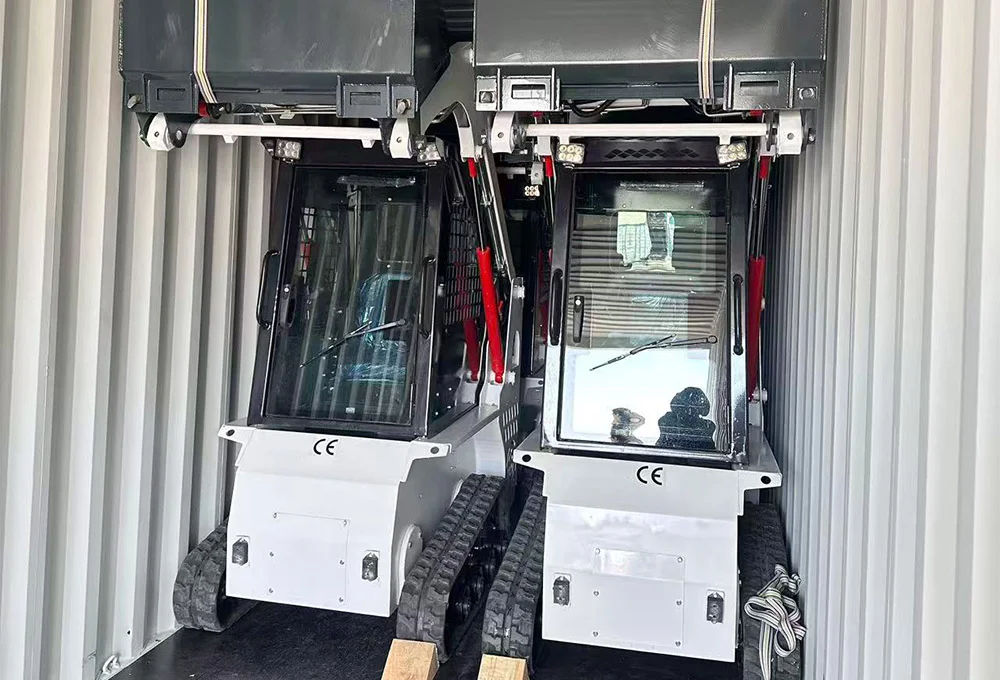

FD320
FD320
Small skid steer loaders suit narrow, rugged and frequently changing working sites.
Model: FD320
Engine Options: RATO R420D/Briggs & Stratton XR2100/KOOP 1921/Kubota D722
Rated Power: 13.5HP/13.5HP/11HP/10.2KW
Standard Speed: 3600rpm/3600rpm/3000rpm/2500rpm
Cylinders: 1
Aspiration: Natural
Displacement: 420cc
Emission Standard: EuroV/EPA Tier 4
Product Description
Small skid steer loaders suit narrow, rugged and frequently changing working sites.
Ideal for infrastructure construction, industrial operations, dock loading, urban roads, residences, barns, livestock houses and airport runways. It also serves as auxiliary equipment for large construction machinery.
Skid steers come in two travel types: wheeled and tracked.
Product Data
| Model | FD320 |
| Engine Options | RATO R420D/Briggs & Stratton XR2100/KOOP 1921/Kubota D722 |
| Rated Power | 13.5HP/13.5HP/11HP/10.2KW |
| Standard Speed | 3600rpm/3600rpm/3000rpm/2500rpm |
| Cylinders | 1 |
| Aspiration | Natural |
| Displacement | 420cc |
| Emission Standard | EuroV/EPA Tier 4 |
| Rated Load Capacity | 200kg |
| Max Load Capacity | 300kg |
| Max Breakout Force | 350kN |
| Travel Speed | 0-6km/h |
| Three-phase Cycle Time | 9s |
| Hydraulic System Pressure | 17-21bar |
| Fuel Tank Capacity | 5L |
| Max Operating Height | 2490mm |
| Height to Bucket Pin | 1670mm |
| Overall Height | 1390mm |
| Max Height with Bucket Level | 2180mm |
| Length without Attachments | 1540mm |
| Length with Standard Bucket | 2160mm |
| Max Dump Angle at Height | 139° |
| Dump Height | 1564mm |
| Dump Reach | 446mm |
| Ground Bucket Rollback | 25° |
| Max Bucket Rollback | 115° |
| Bucket Volume | 0.06m³ |
| Operating Weight | 630kg |
| Track Model | / |
